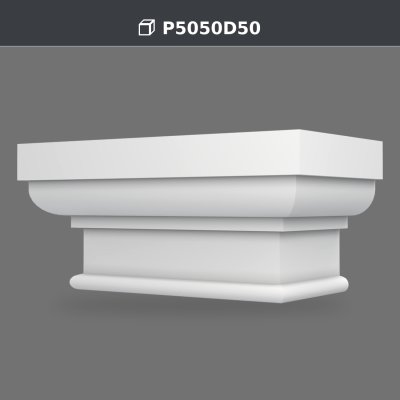

34x69x32 cm Polyurethane Pilaster Capital Decoration
Technical Specifications
| Material | Polyurethane |
|---|---|
| Surface | Smooth, paintable surface with detailed embossed lines |
| Color | Primed white (can be painted in the desired color after application) |
| Density | 150-220 kg/m³ |
| Water Absorption | below 1% |
| Dimensional Stability Test | -20 °C / +70 °C |
| Fire Class | B2 (DIN 4102-1) |
| Paintable | Yes |
| Usage | Indoor + Outdoor |
| Water Resistant | Yes |
| Diameter | Ø 34 cm |
| Dimensions | 343 × 686 × 315 mm |
| Sales Unit | piece |
Details
Support
Similar Products(Pilaster Columns)
The P5050D50 pilaster capital is a decorative architectural element that completes the upper section of a pilaster shaft. With dimensions of 34 x 69 x 32 cm, it creates a strong upper profile effect; it makes pilaster shafts more prominent in entrance surrounds, living room walls, and facade compositions. The product is non-structural; it is applied as a decorative finish layer over existing concrete, stone, or other structural surfaces.
The rigid polyurethane (PU) used in production has a closed-cell structure with a density of 150-220 kg/m³. This structure provides a lighter solution compared to plaster and solid wood details while helping to preserve fine relief lines. Water absorption is below 1%. Dimensional stability has been tested over the range of -20 °C / +70 °C; this value should not be interpreted as service temperature or thermal resistance. Fire performance is covered under B2 (DIN 4102-1) and phosphorus-based flame retardant.
The P5050D50 is delivered in white with a factory-applied primer. The detailed relief lines on a smooth surface accentuate light and shadow transitions across the pilaster capital. Sharp profile edges harmonize with classical and neoclassical architecture, while the surface can be painted with water-based or synthetic paint to match the project. For exterior applications, the surface must not be left unpainted, and UV-resistant paint must be used.
The pilaster capital is used to emphasize the upper termination of a pilaster shaft. It can be placed above vertical shafts framing door surrounds in villa entrances. In hotel lobbies, it frames wall panel compositions; in restaurants and retail spaces, it creates accent surfaces. In a living room or corridor, a single pilaster arrangement can be highlighted; on wide walls, symmetrical pairs create a classical axis. On exterior facades, it works with pilaster shafts around windows and entrances. Joints and fastener points on the facade must be sealed with exterior filler.
Before installation, the surface is cleaned, dried, and made sound. If cutting is required, a 45° miter cut is prepared; the junction with the pilaster shaft is checked. Polyurethane (PU) mounting adhesive is applied, and mechanical fastening with screws is mandatory. Connection marks are then filled, sanded with 180–220 grit sandpaper, a suitable primer is applied, and two coats of paint are applied. The factory primer prepares the surface for paint; additional primer application is optional, but paint manufacturer warranty conditions should be verified separately.
The closed-cell PU structure offers better resistance to moisture and rot compared to plaster or wood, making it a superior decorative alternative. It is firmer than EPS foam; its detailed surface can be filled, sanded, and renewed if needed. P5050D50, by virtue of its size and prominent upper profile, provides completeness in pilaster applications and can be painted for both interior and exterior use.
- The P5050D50 pilaster capital is used to emphasize the upper termination of a pilaster shaft
- In villa and single-family home entrances, it can be placed atop vertical shafts surrounding doors
- In living rooms, corridors, and stairwells, it creates a classical frame integrated with the wall
- In hotel lobbies, restaurants, retail spaces, and office receptions, it makes pilaster arrangements more prominent
- In bedrooms, symmetrical placement on either side of a decorative wall composition provides an architectural transition between furniture and wall paneling
- On exterior facades, it works with pilaster shafts around windows or entrances; UV-resistant paint is required for exterior use
- The 34 cm width and 32 cm depth ensure the element is noticeable on mid-sized and large walls without appearing diminished
- The 69 cm height creates a strong finishing effect at the upper portion of the pilaster shaft
- The capital serves no structural purpose; it is applied as a decorative layer over existing structural elements
- The application surface is cleaned of dust, oil, and moisture; the surface must be sound and dry
- The P5050D50 pilaster capital is positioned with its junction with the shaft and dimensions verified
- For necessary cuts, a 45° miter cut is preferred
- The element is secured to the surface and pilaster shaft with polyurethane (PU) mounting adhesive
- In addition to adhesive, mechanical fastening with screws is mandatory
- Screw heads and joint lines are filled with filler
- The dried surface is refined with 180–220 grit sandpaper, then a suitable primer and two coats of paint are applied
- The factory primer provides paint preparation; additional primer use is optional
- On exterior facades, joints and fastener points must be sealed with exterior filler, and the final coat must be UV-resistant paint
- The P5050D50 surface can be wiped with a soft dry or slightly damp cloth to remove accumulated dust
- Abrasive sponges, stiff brushes, and cleaning products with strong chemicals can damage relief lines and the paint layer
- During cleaning, do not leave the surface wet for extended periods
- On exterior facades, the paint layer and joint points should be inspected visually at regular intervals
- If cracks, bubbling, or paint wear are observed, the affected area should be filled, sanded, and renewed with an appropriate paint system
Can the P5050D50 pilaster capital be used on an exterior facade?
Yes, the product can be used as a decorative finish element on exterior facades. Installation must be on existing structural surfaces; the product is not structural. On the exterior, the surface must not be left unpainted, and UV-resistant paint must be used. Joints and fastener points must be sealed with exterior filler to maintain surface integrity against water and air exposure.
How is the pilaster capital installed and painted?
The capital is secured to a clean, dry surface with polyurethane (PU) mounting adhesive and mechanical fastening with screws. Joints and fastener marks are filled, then refined with 180–220 grit sandpaper. A suitable primer is applied, followed by two coats of paint. Whether additional primer is required depends on the paint manufacturer's application and warranty conditions.
What is the product's density and actual weight?
The material density is 150-220 kg/m³. The actual weight of the finished piece depends on the mold cavity volume and product geometry; therefore, exact weight cannot be determined from dimensions alone. P5050D50 provides a lighter solution than plaster or solid wood decorations, but its own weight and connection loads must be considered when performing mechanical fastening.
Why choose this pilaster capital over plaster or wood?
The closed-cell structure provides superior resistance to moisture and rot compared to plaster or wood. It is firmer than EPS foam and better preserves fine relief detail. Its light weight simplifies handling and installation. The surface can be filled, sanded, and painted; minor installation marks can be renewed if needed.
What colors is P5050D50 available in?
The product is delivered factory-primed in white and can be painted to any desired color after installation. Water-based or synthetic paint may be used. Before painting, the surface must be cleaned, joint filler must be properly sanded smooth, and paint manufacturer preparation guidelines must be followed. For exterior use, color selection must be paired with UV-resistant paint.
